Holset Turbine Housing 3592269 for Cummins K50 Turbo

Holset Turbine Housing 3592269 for Cummins K50 Turbo

Description Turbine Housing 3592269

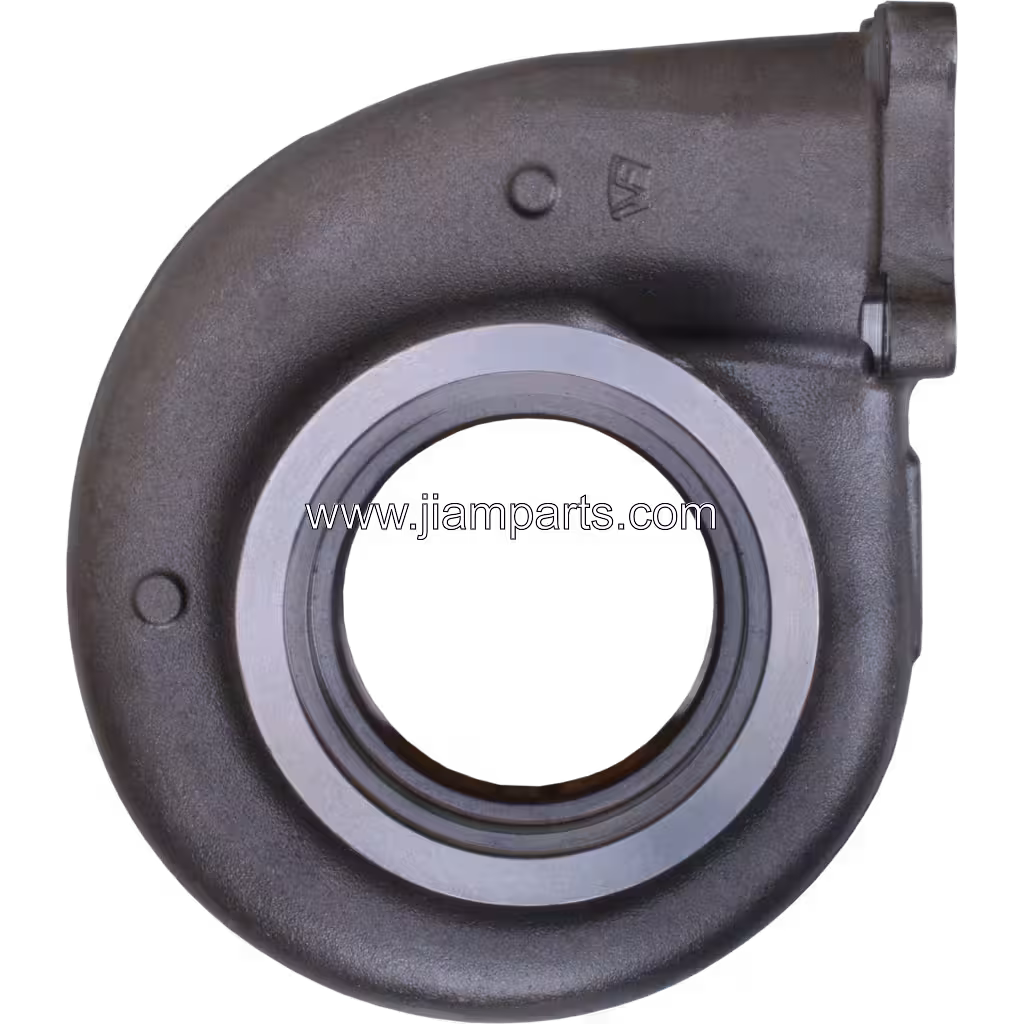

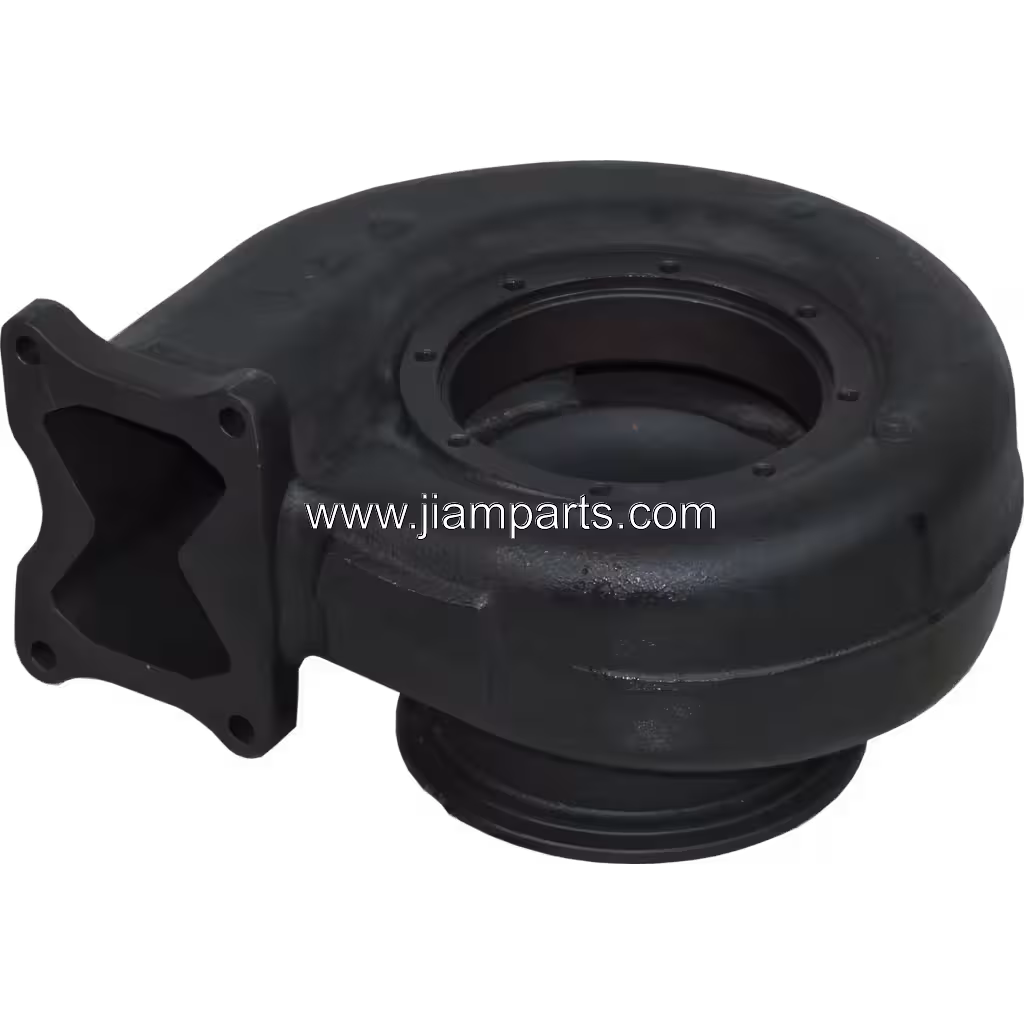

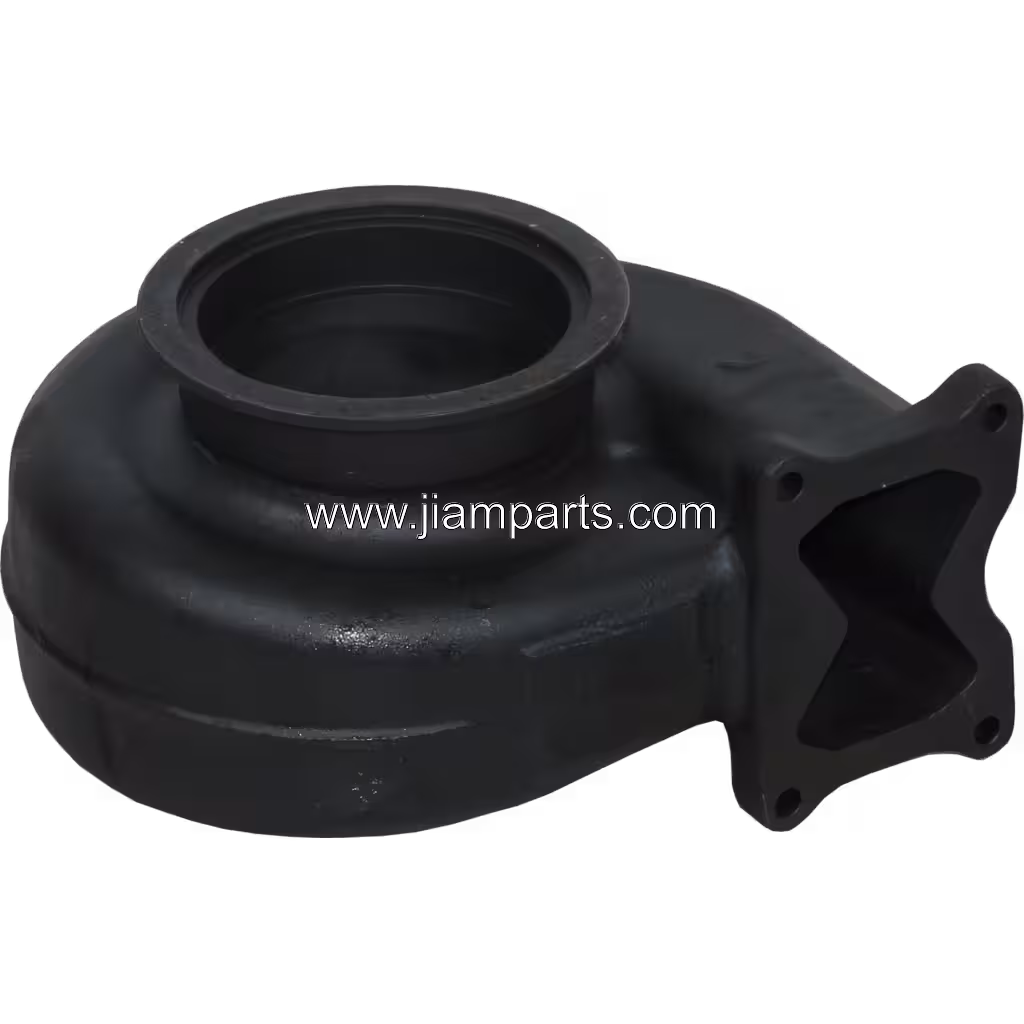

Photo of Turbine Housing 3592269

---

---

Holset HX82 / HX83 / HX85 Turbine Housings – Product Description

Series Overview

The Holset HX80/82/83/85 series represents a heavy‑duty range of turbochargers designed primarily for large‑bore diesel engines in industrial, mining, power generation, and marine applications. The HX82, HX83, and HX85 models are the core variants within this family, covering engine outputs from approximately 500 to over 1,200 horsepower and suitable for displacements of 15 to 25 litres.

The turbine housing is a critical component that directs exhaust gas onto the turbine wheel, converting thermal energy into mechanical power. All housings in this series are manufactured from high‑grade cast iron to ensure durability under extreme temperatures and cyclic loads.

---

Common Features

• Material: High‑strength cast iron with excellent thermal fatigue resistance.

• Cooling: Oil‑cooled bearing housings (standard); water‑cooled variants available for HX85M marine applications.

• Flange options: T6 inlet flange (HX82) and other configurations depending on part number.

• Versatility: Multiple inlet/outlet angles and A/R ratios to match specific engine maps.

• Interchangeability: The HX82 shares the same centre housing (bearing housing) with HC5A, HX80, and HX85, allowing limited interchangeability of compressor covers, backplates, and turbine wheels – provided exact part numbers are verified.

---

Model‑Specific Details

HX82 Turbine Housing

• Typical OEM Part Numbers: 3539960‑CAST1, 4036481, 4043235, 3593046, 3591819, 3590989, etc.

• Applications: Commonly used with Cummins QSK19, QSK38, QSK60, QST30, QSX15 engines; also fitted on Komatsu WA600 wheel loaders and other mining equipment.

• Weight range: 18.85 – 21 kg depending on configuration.

• Flange: T6 inlet; outlet angles vary (e.g., 22.5°/360°, 67.5°/337.5°, β variants).

• Inducer/exducer compatibility: Supports various turbine wheel sizes (e.g., 129mm inducer / 95.4mm exducer).

HX83 Turbine Housing

• Typical OEM Part Numbers: 3591171, 3591602, 4089809, 3591301B, 3593643, 3590265‑cast‑1, etc.

• Applications: Designed for higher‑output engines such as Cummins QSK50 (up to 1600 HP), QSK60 (up to 2414 HP in generator sets), and QSK19 industrial variants. Extensively used in heavy‑duty power generation and marine propulsion.

• Weight range: 20.3 – 28 kg.

• Flange: Generally configured with 45°/360° outlet angles, but variations exist.

• Note: Different part numbers reflect different A/R ratios, discharge orientations, and power ratings.

HX85 Turbine Housing

• Typical OEM Part Numbers: 4043606, 4043605, 3537121 (water‑cooled for HX85M).

• Applications: Primarily used with Cummins KTA50, KT306, C1800, and marine engines. The HX85M variant features a water‑cooled turbine housing specifically engineered for marine duty cycles where higher heat rejection is required.

• Weight: Approximately 20 kg.

• Interchangeability: Shares compressor housing designs with HX80, and the turbine housing can be interchanged with certain HX80 configurations when part numbers align.

---

Selection & Ordering Guidance

• Always confirm the original OEM part number stamped on the existing turbine housing – this is the single most reliable way to ensure exact fit.

• Verify the engine model and application (e.g., QSK50 vs. QSK60 vs. KTA50) as the housing geometry, bolt pattern, and exhaust outlet orientation are application‑specific.

• Check the cooling type – oil‑cooled is standard; water‑cooled versions are available for marine or extreme heat conditions.

• Note on aftermarket products: The housings listed are high‑quality aftermarket replacements built to OEM specifications, not genuine Holset parts, but designed to match performance and durability.

---

Typical Industries & Uses

• Mining haul trucks and wheel loaders

• Oil & gas compressor packages

• Marine propulsion and auxiliary engines

• Power generation (gensets, standby, and prime power)

• Heavy construction equipment

---

This description provides a comprehensive overview. For detailed dimensional drawings, bolt circle patterns, or specific A/R values, please refer to the corresponding OEM technical bulletins or contact our technical support team.
